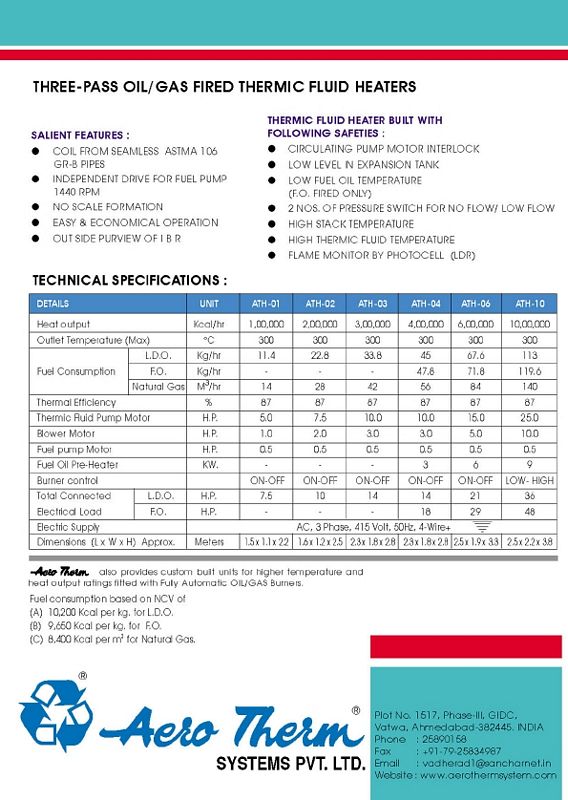

| The high performance Aero Therm Thermic fluid heater built with following safeties: |
| |
| » |
Circulating pump motor interlock. |
| » |
Low level in expansion tank. |
| » |
Low fuel oil temperature (F.O. fired only). |
| » |
2 Nos. of reassure switch for no flow/low flow. |
| » |
High thermic fluid temperature. |
| » |
Flame monitor by photocell (LDR). |
| Salient Features: |
| |
| » |
Coil from Seamless ASTMA 106 GR-B Pipes. |
| » |
Independent Drive for Fuel Pump 1440 RPM. |
| » |
No Scale Formation. |
| » |
Easy & Economical Operation. |
| » |
Outside purview of IBR. |
| Details require for quotation: |
| |
| » |
Capacity in KCAL/HR. |
| » |
Temperature in Deg. C. |
| » |
Type of Fuel in Light Diesel Oil / Furnace Oil / L.P.G. / Natural Gas. |
|
|
INDUSTRIES
|
APPLICATIONS
|
| DYES,CHEMICALSAND INTERMEDIATES |
PROCESS HEATING AND DISTILLATION IN JACJETED / LIMPET VESSELS AND REACTOR DRYING – TRAY DRYERS, SURAY DRYERS, FLASH DRYERS, SPIN FLASH DRYERS VANNULATH DRYERS, FLUID BED DRYERS, CONVEYOR DRYERS. |
| TEXTILES |
HOT AIR STANTER, SCREEN PRINTING – TABLE HEATING, FLAT BELT, ROTARY SCREEN PRINTING. |
| PACKING |
LAMINATING UNIT, COATING UNIT, ROTOGRAVURE PRINTING, WAX MELTING AND PREHEATING UNIT. BITYMINOUS COATING UNIT. |
| FERTILIZER & PETROCHEMICALS |
PROCESS HEATING AND DISTILLATION IN JACKETED / LIMPET VESSELS AND REACTOR DRYING – TRAY DRYERS, SURAY DRYERS, FLASH DRYERS, SPIN FLASH DRYERS VANNULATH DRYERS, FLUID BED DRYERS, CONVEYOR DRYERS. |
| RUBBER INDUSTRIES |
MOLDING PRESS HEATING RUBBER CURING. |
| CERAMICS |
DRYING, SPACE HEATING. |
| PHARMACEUTICAL, BULK DRUGS AND FOOD STUFF |
PROCESS HEATING AND DISTILLATION IN JACJETED / LIMPET VESSELS AND REACTOR DRYING – TRAY DRYERS, SURAY DRYERS, FLASH DRYERS, SPIN FLASH DRYERS VANNULATH DRYERS, FLUID BED DRYERS, CONVEYOR DRYERS. |
| METAL FINISHING |
SURFACE TREATMENT PICKING, RINSHING, ANODIZING, ELECTRO PLATING BATH HEATING POWER COATING OVEN, PAINT BACKING OVEN. |
| ALUMINIUM INDUSTRY |
AGEING OVEN FOR CONDUCTORS AND EXTRUDED SECTIONS SURFACE TREATMENT PICKING, RINSHING, ANODIZING, ELECTRO PLATING BATH HEATING POWER COATING OVEN, PAINT BACKING OVEN. |
| WOOD INDUSTRY |
SEASONING. |
| OIL INDUSTRY |
PROCESS HEATING AND DISTILLATION IN JACKETED AND LIMPET VESSELS AND REACTOR HEATING HYDROGENATION OF OIL. |
| ROAD CONSTRUCTION |
BITUMEN TANK HEATING. |
| |
|
